Jack Mount
A recreation of the original mount for the scissor jack that was located either under the driver's seat or under the hood on certain model year CJ5's and CJ7's.
- 16 Gauge Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$25
Keychain
- Approximately 1" x 3"
- Includes Key Ring
- 12 Gauge Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$15
Rear Corner Lower Repair Section
Exposed surface approximately 12 inches tall, when measuring from lower edge to bottom of flanged area. The section covers the spare tire support, a typical problem area for rust.
- 18 gauge steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$55.00 Driver
$55.00 Passenger
$100.00 Pair
2 Piece Side Repair
Our new two piece side panel repair kit includes the properly stamped Jeep font for your vehicle make and year. Both panels are designed to fit together and span the full front to rear side panel length. Our forward and rear side panel ends are formed like the original Jeep side panel.The bottom edges and fender opening are likewise formed like the original.The joining areas and upper edges are flanged to allow for a flush fit as well as welding backup for easier installation.
Note that you must retain the original upper two inches of your panel and original side panel indent detail for integration into your panel.
You may order the front or rear panels individually if you wish. (Note the cut off point in our illistration if ordering individually.)
- 18 gauge steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$145.00 Front 1/4 Side Repair Panel A
$155.00 Rear 1/4 Side Repair Panel B
Front Floor Parts Diagram
B.Traverse Supports (Full or Partial)

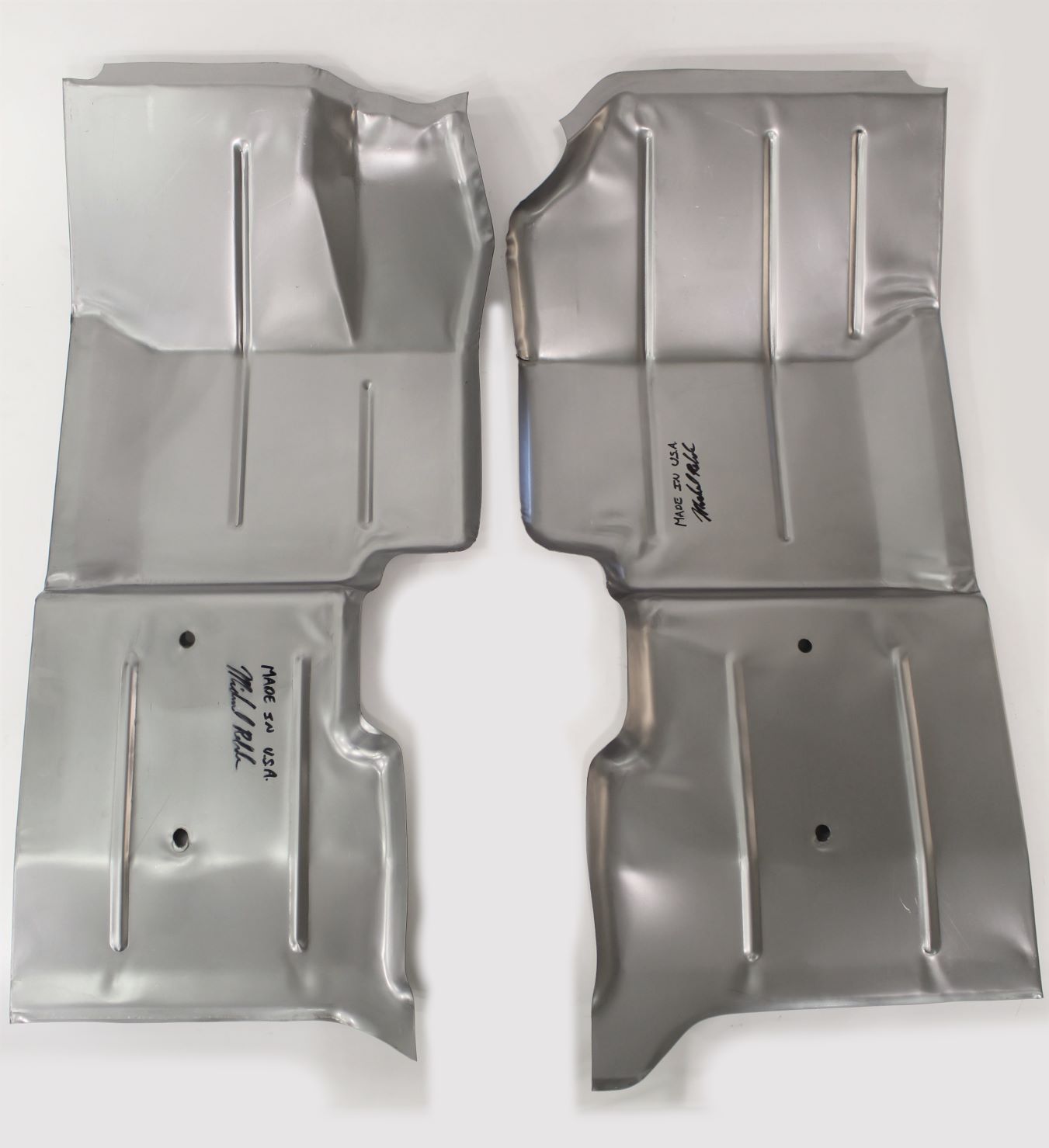

Wider Design Front Floor Panels
Die stamped as a full length panel that spans the distance from the firewall seam to the rear floor riser as one continuous panel. A one piece panel makes for fewer fitting and alignment problems and less welding and warpage during installation.
The outside edges are folded down as was original. The inboard edges are folded upward to follow the transmission tunnel curvatures as shown in our photo. We do not drill or punch any holes other than the two per panel as shown in the photos at the right. We have found that our customers prefer to drill their own according to their need and preference.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$170.00 Driver
$170.00 Passenger
$340.00 Pair
Foot Area Repair Clips
Outside edge is rolled down as was original.
- Approx. 16" wide
- Die Stamped
- 18 gauge steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$55.00 Drivers
$55.00 Passenger
$110.00 Pair
Toe Board Front Floor Body Supports
All captured nuts and studs attatched.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$95.00 Driver
$95.00 Passenger
$190.00 Pair
Traverse Body Supports
Full Width One Piece
Our one piece support can be installed without removing the body from the frame, although you may have to raise the body slightly on some types. Installation can be accomplished by rear drive shaft and/or exhaust pipe removal in some instances. A one piece traverse support is sure to save you considerable cutting, alignment, and welding time, and alleviate a lot of general installation frustration as well.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
175.00 each
Traverse Body Supports
Driver and/or Passenger
Properly gauged with appropriate caged nuts that are pre-installed for your convenience.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$115.00 Driver
$115.00 Passenger

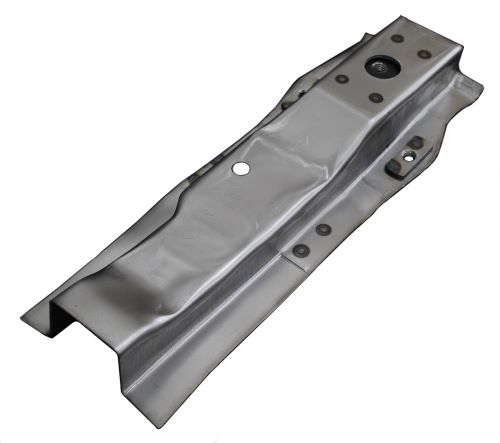

Front Outboard Rails
Floor Body Supports
Die formed in steel heavier than the original.
Captured nuts are attached.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$55.00 Driver
$55.00 Passenger
$110.00 Pair
Inboard Rails, Floor Body Supports
Die formed in steel heavier than the original. Captured nuts are attached.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$50.00 Driver
$50.00 Passenger
$100.00 Pair

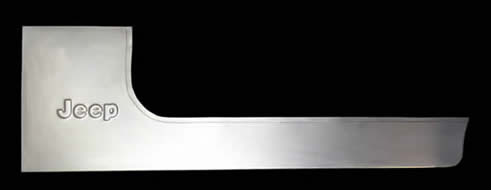

"Jeep" Stamped Side Repair
The upper edge of our panel is flanged to allow for a flush fit when clamping against your cut along the driver and passenger side entrances. It has the original type overlap reinforcement at the front of each panel where it bolts to the fender. The Jeep stamped lettering is exact in accordance to our original sample panel and approved by Chrysler LLC. The forward, upper, rear and lower edges of our panel are a duplication of the original.
- 18 gauge steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$145.00 Driver
$145.00 Passenger
$290.00 Pair
Lower Side Repair Strip
Our panel is formed with a flanged upper edge that allows for a flush fit for welding purposes. The length of our panel begins with a 900 fold at the front fender seam and ends with a properly formed wheel arch area just like the original. Our panel has an exposed face surface 4" high.
- 18 gauge steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$50.00 Driver
$50.00 Passenger
$100.00 Pair
"Jeep" Stamped Cowl Area
Repair Clip
Top, front & bottom edges are formed like the original panel. Rear edge is flanged to form a flush fit during installation.
We add an original type overlap reinforcement to the front of each panel where it bolts to the fender. To allow flexibility for the installer, we do not pre-drill the mounting holes in the reinforcement.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$55.00 Driver
$55.00 Passenger
$110.00 Pair
Cowl Area Body Reinforcements
- Die Formed
- 14 gauge steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$60.00 Driver
$60.00 Passenger
$120.00 Pair
Cowl Area Reinforcment
Lower Repair Section
- 10 inches tall
- Die Formed
- 14 gauge steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$75.00 Driver
$75.00 Passenger
$150.00 Pair
Rear Floor Riser
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$145.00 each
Front View
Top View
Rear Floor Panel
Strict attention is paid to crisp stamping detail and general panel appearance and accuracy.
All appropriate threaded fasteners are attached as they were on the original panel.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$350.00 each
Wheelhouse
This wheelhouse matches the original design on Jeeps from '76-'95.
The notches in the rear of the wheelhouse must be cut by the restorer. This allows a more customizable fit to meet both the varying needs of the late CJ5, CJ7, and YJ, and also any customizations that may have taken place on the Jeep throughtout the years or during restoration.
- 18 Gauge Steel
- Ribs and outboard edges are die formed.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$185.00 Driver
$185.00 Passenger
$370.00 Pair
Wheelhouse Support Baffel
With Corner Support
- Die Formed
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$105.00 Driver
$105.00 Passenger
$210.00 Pair
Wheelhouse Support Baffle
- Die Formed
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$45.00 Driver
$45.00 Passenger
$90.00 Pair
Wheel Arch Repair Panel
2 1/4" exposed face with a flanged edge for a flush fit when welding. The wheel side edge is properly rolled inward as was original.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$115.00 Driver
$115.00 Passenger
$230.00 Pair
Tailgate End Body Support
All tailgate end supports are intended to attach the body to the frame via a body bolt at each end of the support. Our product is a very close representation of what was original to your Jeep.
It is properly factory gauged and properly die formed with all captured nuts brought to original factory size and standard. We have paid very close attention to quality and detail and thus have an exceptional product for you.
Our end supports can also be special ordered for use on types that do not have tailgates.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$215.00 each
Tailgate Opening Surround
The holes are drilled for the tailgate hinges and the chain hook eyes are attatched.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$115.00 each
More Information and Add to Cart Options
Tail Light Panel
All edges are properly formed as was original. Panels are not drilled or punched, which allows the installer various tail light placement options.
- Die Formed
- 18 gauge steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$35.00Driver
$35.00Passenger
$70.00 Pair
Rear Frame Crossmember Body Support
Perfectly detail cut & formed in original gauge steel.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$135.00 each
Rear End Panel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$425.00 each
End Panel Support Bracket
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$30.00 Driver
$30.00 Passenger
$60.00 Pair
Custom Flush Mount Taillights
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$80.00 each
$160.00 pair
