'51 - '71 Jeep CJ5 | Willys M38A1
_____Floor_____
___Front Area___
Side and Cowl Area
____Supports____
__Tail/Rear Area__
___Wheel Area___
_______All_______
Gifts and Misc.
Patch Panel
- Approximately 8" x 11"
- 18 Gauge Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$35.00
Keychain
- Approximately 1" x 3"
- Includes Key Ring
- 12 Gauge Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$15.00
Rear Side Panel Section Top Bow Indent
- 18 gauge steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$95.00 Driver
$95.00 Passenger
$190.00 Pair

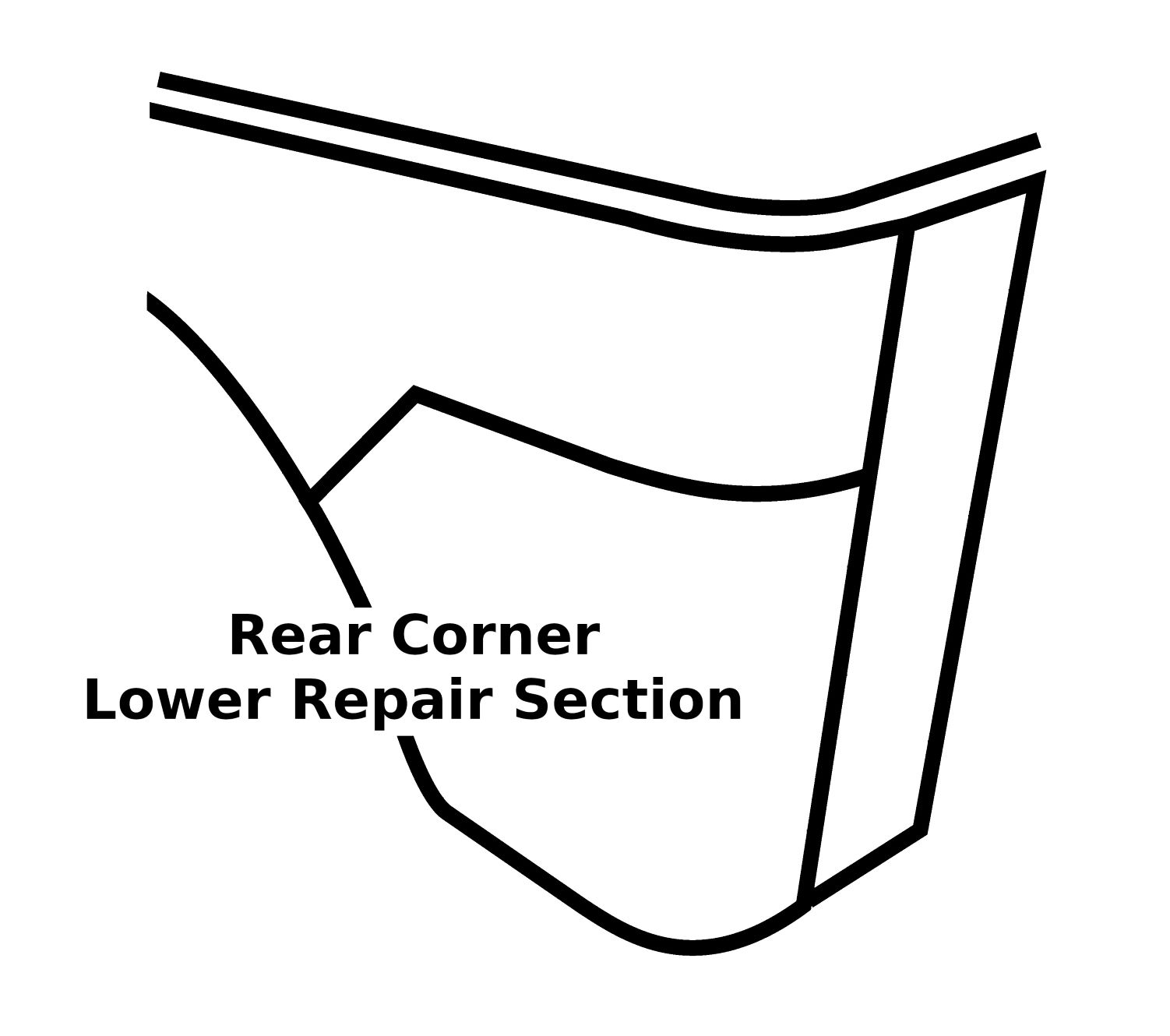

Rear Corner Lower Repair Section
Exposed surface approximately 12 inches tall, when measuring from lower edge to bottom of flanged area. The section covers the spare tire support, a typical problem area for rust.
- 18 gauge steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$55.00 Driver
$55.00 Passenger
$100.00 Pair
2 Piece Side Repair
- 18 Gauge Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$145.00 Front Quarter Side Repair Panel A
$155.00 Rear Quarter Side Repair Panel B
"JEEP" Stamped Side Repair
- 18 Gauge Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$145.00 Driver
$145.00 Passenger
$290.00 Pair
Lower Side Repair Strip
- 18 Gauge Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$50.00 Driver
$50.00 Passenger
$100.00 Pair
"JEEP" Stamped Cowl Repair Clip
- 17 1/4" High X 12" Wide
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$55.00 Driver
$55.00 Pass
$110.00 Pair
Cowl Area Body Reinforcements
Jeep Cowl Area Reinforcement
- Die Formed
- 14 Gauge Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$60.00 Driver
$60.00 Passenger
$120.00 Pair
More Information and Add to Cart Options
Cowl Area Reinforcement Lower Repair Section
- Die Formed
- 14 Gauge Steel
- 10 inches tall
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$75.00 Driver
$75.00 Passenger
$150.00 Pair
Firewall / ToeBoard Body Supports
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$55.00 Driver
$55.00 Passenger
$110.00 Pair

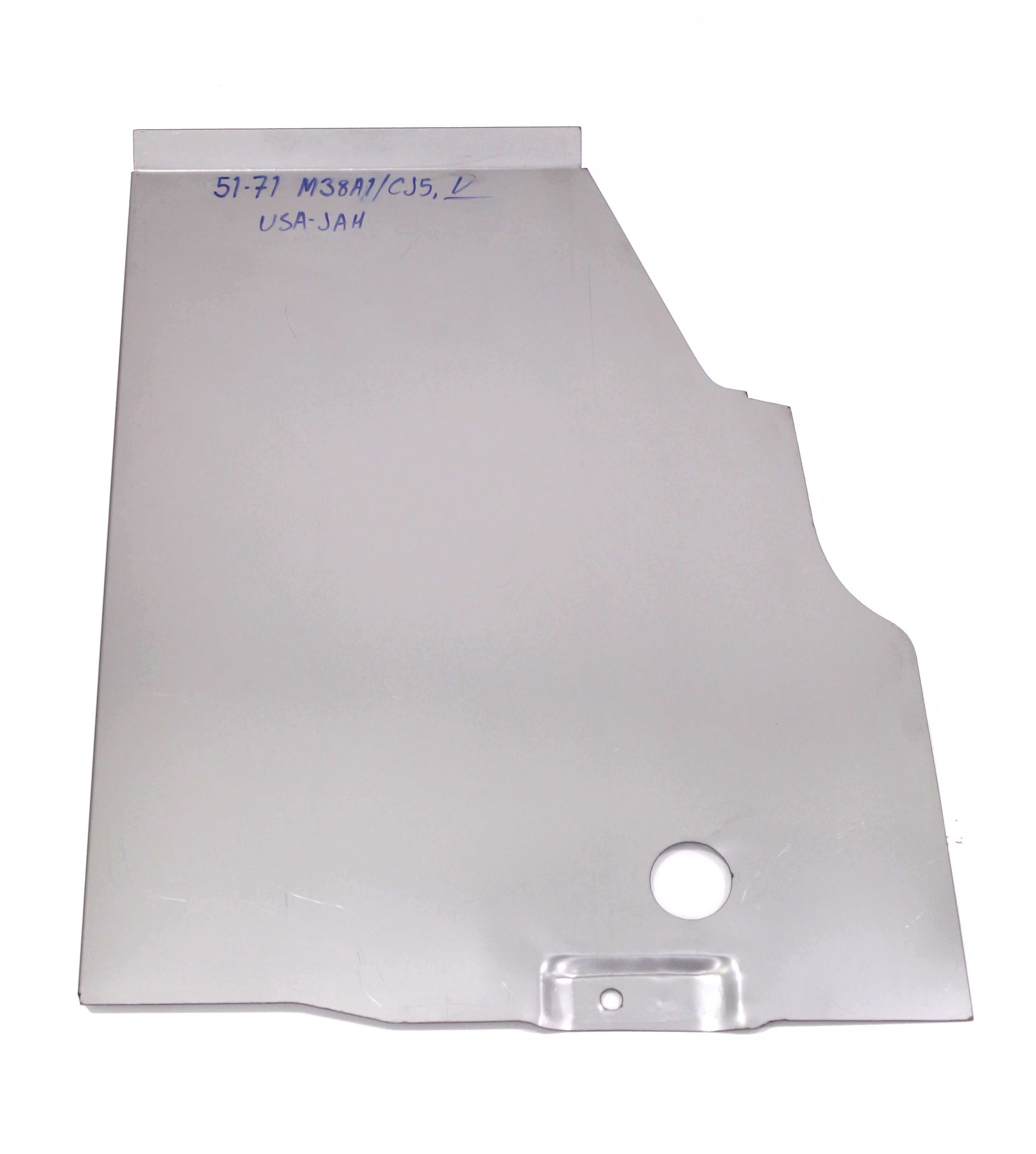

Floor Panels
The length of the panel is from the rear floor riser forward to the toe board area with an approximate 2" roll up. The outside edge of our panel is formed downward to attach to the side panel as was original to the vehicle.
We have provided an extra 2" of material at the transmission tunnel area which you can roll up if needed or trim off if not needed. Our passenger side floor panel does provide for the floor of the toolbox.
- 18 Gauge Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$70.00 Driver
$70.00 Passenger
$140.00 Pair

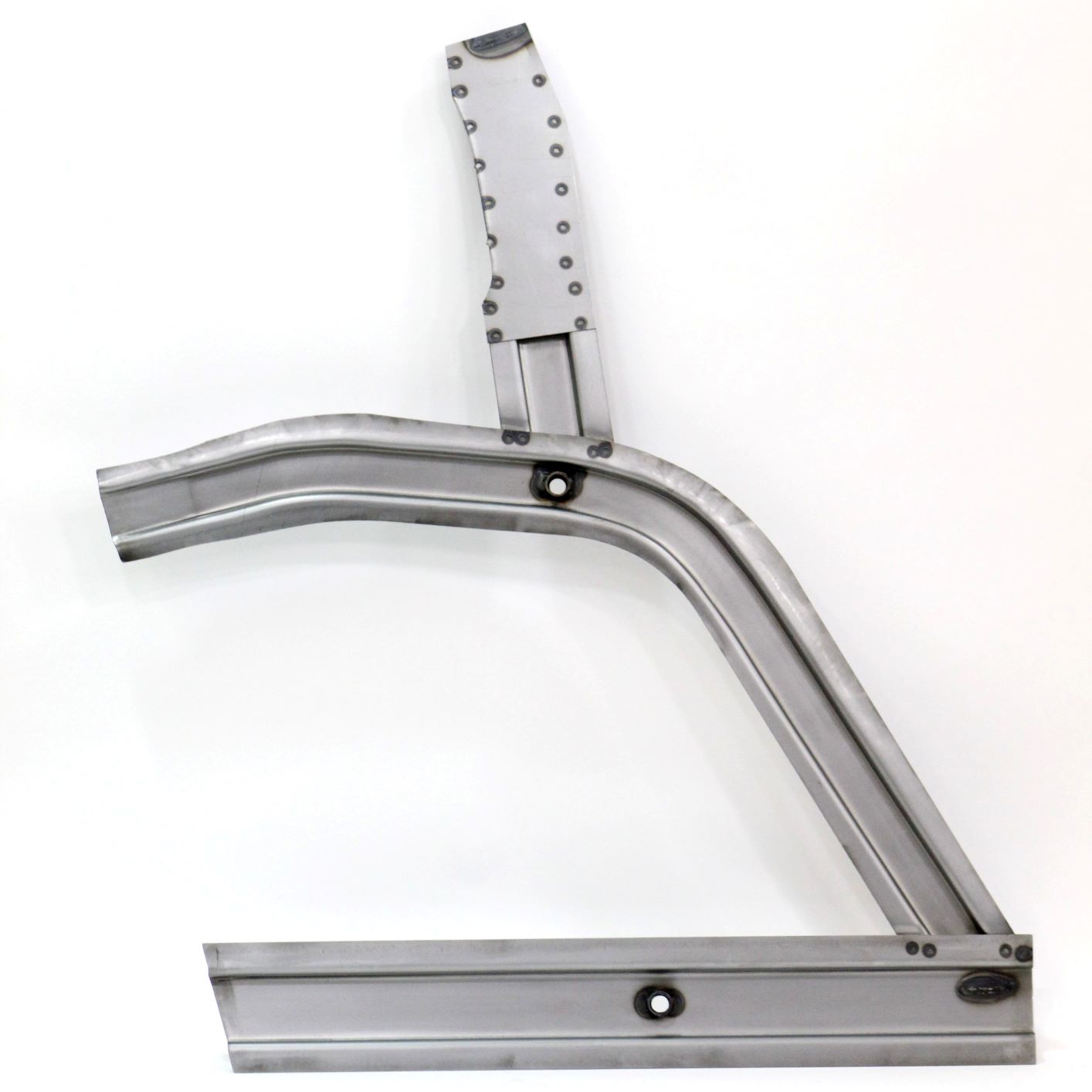

Floor Body Supports
- 16 Gauge Steel
- Pipe Stand-offs used in bolt-down areas, rather than the original wood crush blocks.
- Floor Support Joiners sold separately.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in USA
$90.00 Driver
$90.00 Passenger
$180.00 Pair

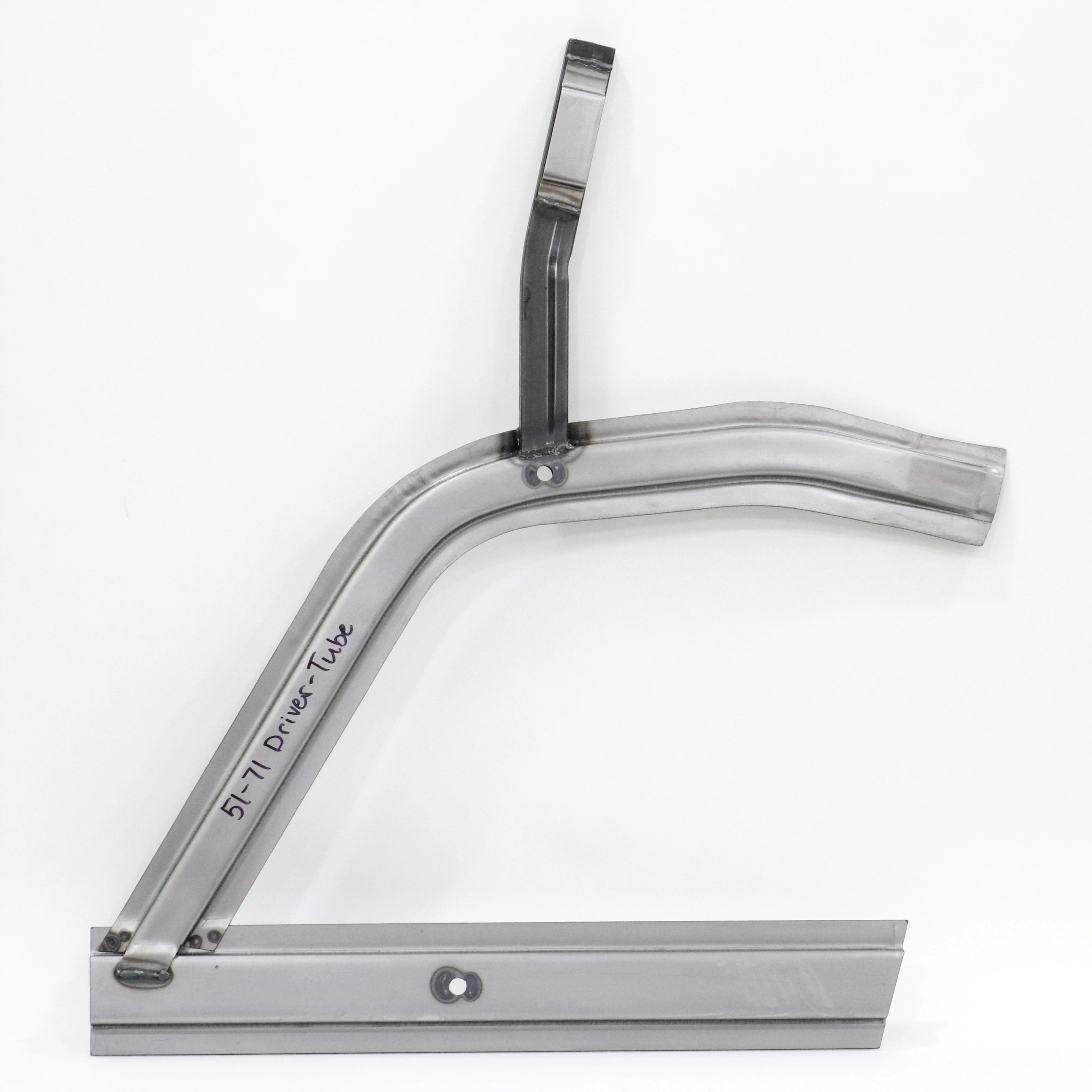

Some early CJ5 Jeep floor supports have a square tubing support element that fits under the driver firewall support. If your Jeep has this, you can use the option below to order the "tube type". (Sometimes the Jeep engineers did mysterious things.)
"Square-tube" style is usually found on 6 or 8 cylinder models.
$90.00 Driver (Square Tube Style)
$90.00 Passenger
$180.00 Pair (Square Tube Style)

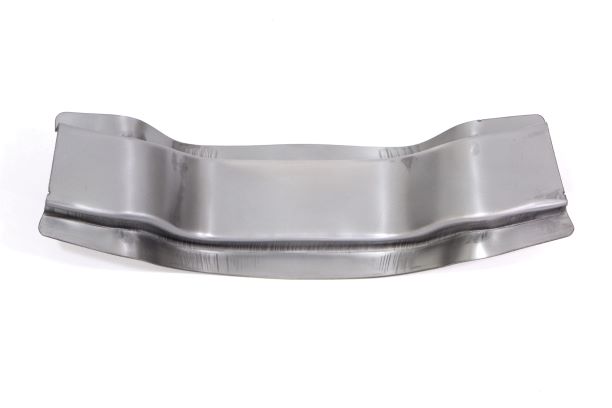

Front Floor Support Joiner
Made for later types not needing an emergency brake spring return retainer. Companion to floor supports above.
- Die Stamped
- 16 Gauge Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$25.00 each
Rear Floor Riser
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$95.00 each
Rear Floor
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$350.00 each
Wheelhouse
- All ribs and outboard edges are die formed.
- 18 Gauge Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$185.00 Driver
$185.00 Passenger
$370.00 Pair
Sparetire and Corner Reinforcement
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$45.00 each
Passenger Wheelhouse Support Baffle
Our baffel is a very good representation of the original factory issued Jeep baffel, which was somewhat crude in its original concept and construction.
- Die Formed
- Passenger Side
- 11 1/2" x 12 1/4"
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$105.00 Passenger
Driver Wheelhouse Support
Our CJ5 support channel is a 2" wider version of the CJ2-3 type. The extra width is provided by our 2" joiner which is securely and neatly spot-welded into place. You will note that our support channel is thus not a 100% accurate reproduction for the purist restorer but is nevertheless completely functional for its intended application. (Our CJ 7 baffel will also fit and do the same job.)
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$45.00 Driver
WILLYS Stamped Patch Panel
Same lettering and scale as originally stamped into CJ2A windshield panel. Hood stamping patch and military WILLYS end panel patch is available upon special request.
- 18 Gauge Steel
- 6" x 8 1/4"
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$35.00 WILLYS Stamp
External Wheelhouse Angle Support
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$25.00 each
$50.00 pair
Wheel Arch Area Repair Panel
2 1/4" exposed face with a flanged edge for a flush fit for welding. The wheel side edge is properly rolled inward as was original.
- Properly Gauged Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$115.00 Driver
$115.00 Passenger
$230.00 Pair
'51-71' Jeep CJ5, '51-62' M38A1, End Panels
Our new end panel is made to exacting specifications for the M38A1 military Jeep but can be used on all non-tailgate types with a 17 3/4" x 50" panel opening. Our panel is a restoration quality product and completely American made in our facility with properly gauged Americal steel. All holes are properly punched and all supports are part of the panel. Likewise all stationary nuts and loops have been properly installed for a completely authentic look.
$495.00 each
More Information and Add to Cart Options
CJ5 Civilian Jeep End Panel, No Taillight Cutouts
17 3/4" x 50"
$425.00 each

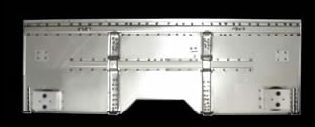

Inside View Shows Supports On M38A1
___________________________________
Inside view of CJ5
Rear Frame Crossmember Body Support with Stiffener Insert
Properly gauged steel, die formed and punched.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$135.00 each
Tailgate Opening Surround
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$115.00 each
'51-'62 M38-A1 Taillight Bracket Rear Body Support
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$45.00 Driver
$45.00 Passenger
$90.00 Pair
Tail Light Panel
Tail Light Panel
Die formed in 18 gauge steel as was original. All edges are properly formed as was original. Panels are not drilled or punched, which allows the installer various tail light placement options.
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$35.00Driver
$35.00Passenger
$70.00 Pair
More Information and Add to Cart Options
Tail Light Panel Rear Body Angle Support
Produced in heavy 16 gauge steel.
$10.00 each
$20 pair
More Information and Add to Cart Options
Tail Light Panel With Body Angle Support Attached
Die formed in 18 gauge steel as was original. All edges are properly formed as was original. Panels are not drilled or punched which allows the installer various tail light placement options.
$55.00Driver
$55.00Passenger
$110.00 Pair
Custom Flush Mount Taillights
$80.00 each
$160.00 pair
Rear Valence Panel
- Die Formed
- 18 Gauge Steel
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$45.00 each
Rear Valence Body Angle Support
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$10.00 each
$20.00 pair
Rear Valence Panel with Body Angle Supports Attatched
- None of our panels are cosmetically coated. Click here to find out why.
- Made in the USA
$85.00 each
